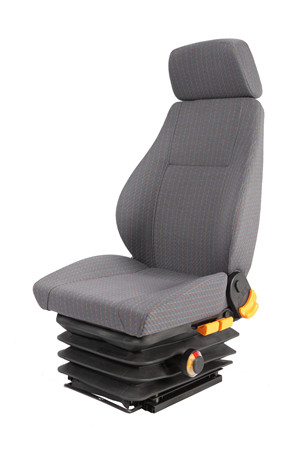

R911-4W

R911-4W

Suspension|Mechanical suspension system Application|Truck/Bus Options|Headrest/Armrest/Safety belt/Mechanical Lumbar
inquiry
  • Specification
  • Comments
  • Specification

    ▪     Horizontal adjustment: stroke 200mm (10mm×20)
    ▪ Weight adjustment: adjust range 40 ~ 130Kg
    ▪ Mechanical suspension function: stroke ±30mm
    ▪ Height / rake adjustment: adjust range ±60mm, rake adjustable ±12°
    ▪ Backrest adjustment: adjust range 80°＋41°
    ▪ Head restraint adjustment: adjust range 75mm (25mm×3)
    ▪ Seat size（length × height × width） 550mm×1080mm×500mm
    ▪ Seat cushion height（work state）245mm, seat cushion width 485mm, seat cushion depth 465mm
    ▪ Backrest height 630mm, backrest width 480mm
    ▪ Connect size（L/R×F/B）216 mm×295.5mm
