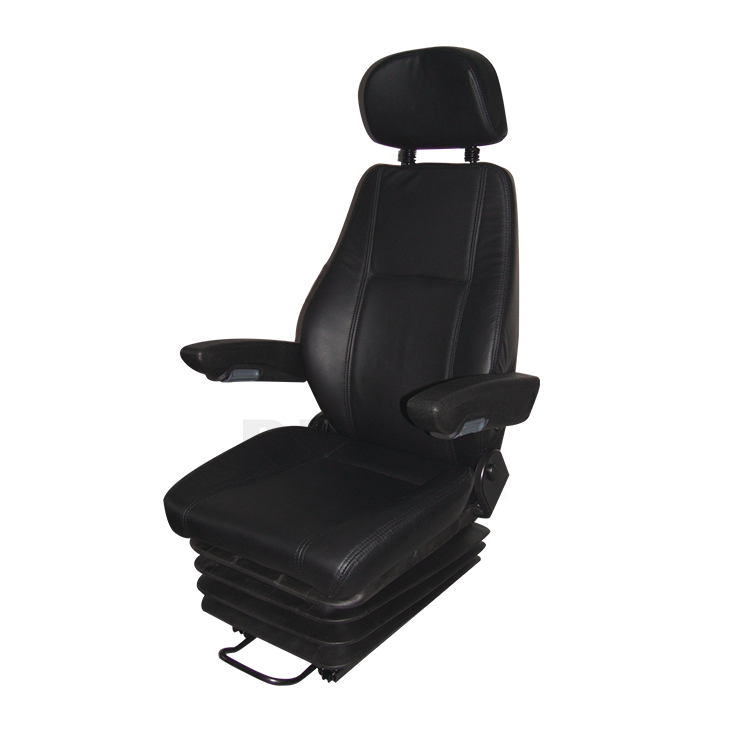

R912-2

R912-2

Application|Light trucks/mini bus Options|Armrest/Safety belt/Lumbar support
inquiry
  • Specification
  • Comments
  • Specification

    ▪     Horizontal adjustment: operating elements front, stroke 150mm.
    ▪ Height / rake adjustment: operating elements ight, in fine increments up to 65mm, rake adjustable , ±14°;
    ▪ Backrest adjustment: operating elements right, adjust range 80°＋41°
    ▪ Head restraint adjustment: adjust range 75mm(25mm×3)
    ▪ Seat size（length×height×width） 550×930×485mm
    ▪ Seat cushion height（work state）225mm ; seat cushion width 485mm ;seat cushion depth 460mm
    ▪ Backrest height 520mm; backrest width 480mm
    ▪ Mounting dimension:（L/R×F/B）216×295.5mm
