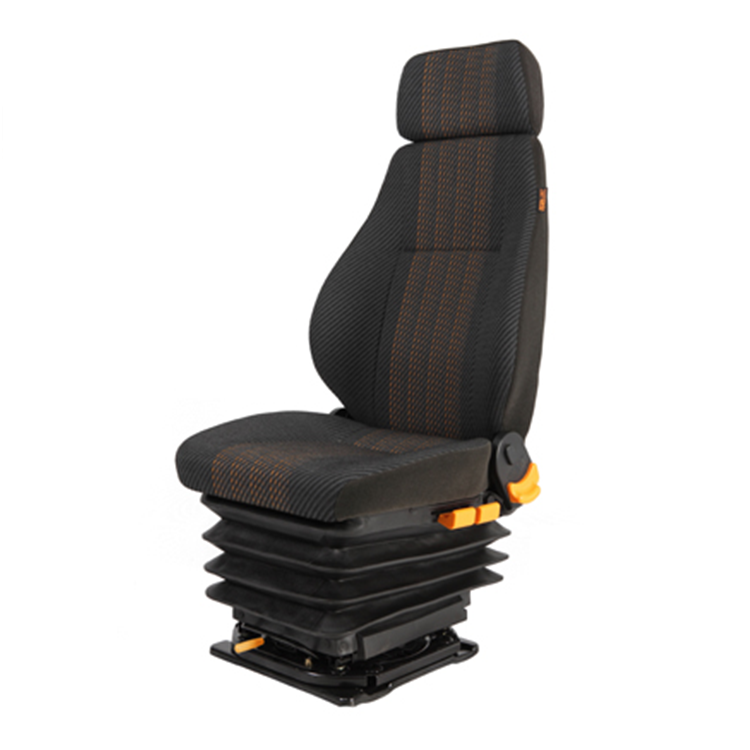

R912-36

R912-36

Application|Light trucks/mini bus Options|Armrest/Safety belt/Lumbar support
inquiry
  • Specification
  • Comments
  • Specification

    ▪     Horizontal adjustment: stroke 200mm (10mm×20)
    ▪ Height / rake adjustment: adjust range ±65mm, rake adjustable ±14°;
    ▪ Backrest adjustment: adjust range 80°＋41°
    ▪ Head restraint adjustment: adjust range 75mm (25mm×3)
    ▪ Turntable: 360°（90°X4）
    ▪ Seat size（length × height × width） 550mm×1055mm×485mm
    ▪ Seat cushion height（work state）345mm, seat cushion width 485mm, seat cushion depth 460mm
    ▪ Backrest height 520mm, backrest width 480mm
    ▪ Connect size（L/R×F/B）372mm×303mm
